What Happens If You Plug an 8-Ohm Head Into a 16-Ohm Cabinet?

Matching amplifier output impedance to speaker cabinet load is one of the most critical aspects of setting up a guitar rig. On the bench, impedance questions come up constantly from players attempting to connect different heads and cabinets without destroying their equipment.

While exact impedance matching is always the gold standard, running an 8-ohm amplifier output into a 16-ohm speaker cabinet is generally considered a safe upward mismatch. When forced to run a mismatch, keeping the cabinet impedance higher than the amplifier output tap prevents severe electrical damage to the head.

Problems arise when running a lower cabinet impedance than the amplifier tap. Driving a 16-ohm output into an 8-ohm cabinet causes extreme current draw that degrades performance and threatens vital components.

The Real Cost of Incorrect Impedance Matching

When an amplifier is driven into an improper load, the internal components take a direct hit. Fuses and power valves serve as the first line of defence, often blowing quickly to protect the circuit. Continuous operation under an incorrect load or running a severe downwards mismatch causes heat to build rapidly in the output transformer.

Over time, this thermal stress causes the transformer windings to burn out, resulting in catastrophic failure. Repairing a blown output transformer depends heavily on the model, age, and rarity of the amplifier. Sourcing a direct replacement or getting a transformer rewound can range from £100 to well over £1,000.

When factoring in bench fees, repairing a damaged transformer on a budget amplifier is often not financially viable. Protecting the output section through correct matching avoids costly bench bills.

How Impedance Mismatches Alter Tone and Volume

Running a safe upward mismatch alters how an amplifier delivers power. Fixed output valve circuits are designed to operate optimally into set wattages and load figures.

When plugging an 8-ohm head into a 16-ohm cabinet, you will experience a shift in headroom, altered tonal response, and a noticeable drop in power or perceived volume. While some modern heads accommodate variable loads cleanly, fixed designs respond with a change in overall output dynamic.

Understanding how multiple cabinets combine is equally vital for keeping gear safe. Running multiple cabinets changes the total load according to basic electrical rules:

• Series Wiring: Running cabinets in series adds their impedance values together. Connecting two 8-ohm cabinets in series creates a total load of 16 ohms.

• Parallel Wiring: Running cabinets in parallel divides the impedance values. Connecting two 8-ohm cabinets in parallel halves the total load to 4 ohms.

Calculating the total load using these basic addition and division steps keeps your valve output transformer running within safe limits.

Bench Solutions and Custom Flexibility

Resolving an impedance issue does not always mean buying a new rig. When a client loves a specific cabinet, three bench solutions exist to make it safe:

1. Harness Rewiring: If the cabinet driver configuration permits, altering the internal wiring between series and parallel transforms the overall load without changing drivers.

2. Driver Replacement: Swapping speakers for drivers from manufacturers like Celestion, Eminence, or Jensen with matching impedance ratings offers a direct way to achieve the precise load and voicing desired.

3. External Matching Interfaces: Impedance matching boxes offer a temporary solution, though rewiring or fitting correct drivers provides a superior long term outcome.

Custom build options solve these routing issues entirely. Hand wired amplifiers equipped with 4, 8, and 16-ohm output taps provide maximum flexibility for any stage setup. Similarly, bespoke speaker cabinets can be tailored with specific driver combinations and custom jack plate layouts to fit your exact impedance requirements.

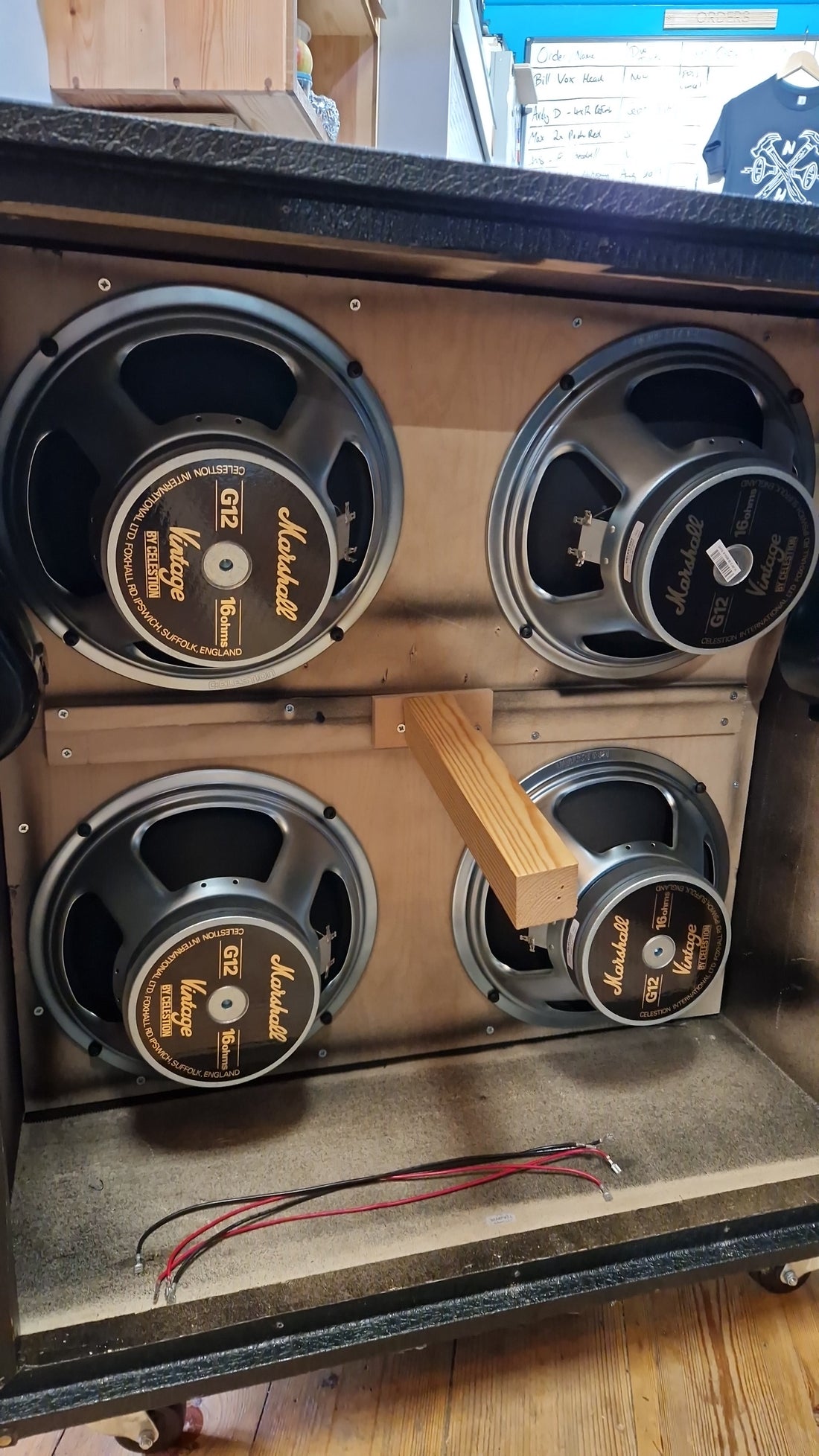

A classic example came through the workshop involving a Marshall JCM800 running into a full stack configuration. The client had been running two 4x12 cabinets wired incorrectly, causing a mismatched load that eventually fried the output transformer.

After replacing the blown transformer and correctly rewiring the cabinet harnesses back to factory specifications, the rig was completely restored. By fixing the impedance mismatch, the amplifier not only survived, but delivered the true, full punchy tone the musician had been searching for all along.
